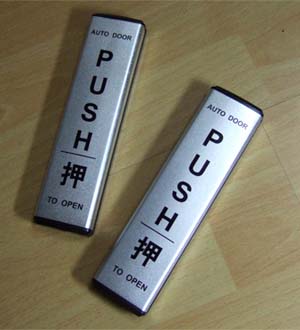

Wireless Switching for automatic doors (Model:WS-310-T3)
Slim design to match all doors!
This is high performance wireless switching device using FM modulation.
| Description |
Specification |
| Frequency |
433MHz/315MHz (Optional) |
| Input Voltage (Receiver) |
6V battery (2 x 3V button Cell) |
| Battery life |
3 year -----( 300 times(1s) per day |
| Code Type |
Rolling Code /Fixed code |
| Operating Temperature |
-10 ℃ to 60 ℃ |
Dimensions (L x W x H) |
187mm x 49mm x 16mm |
Principle:
Upon a slight push on the touch plate mounted on the automatic door ,a transmitter in the plate sends a radio signal to the receiver inside the door channel and operates the door switch.
Features:
Operation of small size antena with receiver makes installation easy;
No electromagnetic interference;
Installation is easy as no wiring needed;
Water-Proof function enhanced,possilbe to install by double-size adhesive tape;
No interference from snow ,rain;
Hopping code and fixed code type is optional.. |
