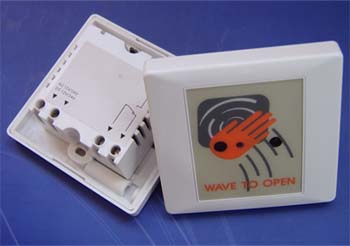

Infrared Contactless Switch WS-410-1
The WS-410-1 Series touchless switches are active infrared devices designed to activate full and low energy automatic doors.
Their hands free operation makes them ideal for ADA applications. Other applications include clean-room access points, request-to-exit devices (3 amp contact) and point-of-purchase displays. The WS-410 is microprocessor controlled allowing for superior operation in a smaller unit.
TECHNICAL SPECIFICATIONS:
.jpg) |
| Technology |
Active infrared （MCU inside） |
| Detection Range |
5 cm ~ 50 cm |
| Detection Mode |
Presence |
| Operating Mode |
Sensor:Active when there is a presence
Switch:Relay toggle when there is presence |
| Supply Voltage |
12~24V AC/DC |
| Relay Output Ratings |
24VDC/120VAC |
| Max.Relay Output |
0.5Ampere |
| Holding Time(Adjustable) |
0~7s (Sense Mode) |
| Dimensions |
87 mm x 87 mm x 36 mm |
|
Main Features
Active infrared motion sensor used as contactless switch;
Avoids any contact with hands or elbows for absolute hygiene;
Adjustable sensing field, between 5 and 50 cm;
Can be completely recessed into any surface;
Can be used in "SENSOR"mode or in "SWITCH" mode;
Insensitive to color, temperature or reflection from the target;
|
|

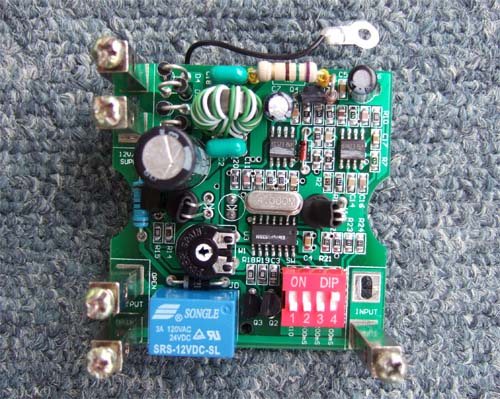

| Setting the sensing field |
|
|
| DIP SWITCH |
ON |
OFF |
| DIP- 1: Out put type |
Latched Relay (SWITCH MODE) |
Momentary Pulse(SENSE MODE) |
| DIP- 2~4: Delay time adjust |
Delay time from 0 to 7 s
| DIP-2 |
DIP-3 |
DIP-4 |
TIME (s) |
| OFF |
OFF |
OFF |
0 |
| OFF |
OFF |
ON |
1 |
| OFF |
ON |
OFF |
2 |
| OFF |
ON |
ON |
3 |
| ON |
OFF |
OFF |
4 |
| ON |
OFF |
ON |
5 |
| ON |
ON |
OFF |
6 |
| ON |
ON |
ON |
7 |
|
Variable Resistance : Clockwise adjust will increase the sensing field. Anti-clockwise will decrease the sensing field.
|
.jpg)
(b).jpg)
.jpg)
