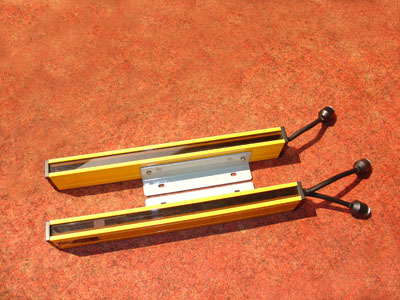

Automatic Door Safety Beam Sensors(LB03)
Applications
Indoor / Outdoor perimeter security system
Window, Door. When the mounting space is limited
Internal / External protection / Terrace / Sliding door
Features
Aluminum housing / PC Resin anti-UV cover / ABS side cap.
Anti-tamper circuit triggers alarm if power is cut or end cap is removed.
Slim aluminum housing, anti high-low temperature / fog / rains.
4 or 8 / 12 / 16 separate photoelectric beam sensors.Programmable trigger on simultaneous breaking of any single or 2 adjacent beams.
Cable wire or terminal block connection.
Alarm: Break one or two adjacent beams.
Tx power adjustment: Normal/Strong.
Sensing range:8 meters (26 ft.)-outdoor 16 meters (52 ft.)-indoor
N.O./N.C./Common relay output.
Mounting hardware included.
No synchronizing wires required.
| Type |
LB03-1 |
LB03-2 |
LB03-3 |
LB03-4 |
| Beams |
4 |
8 |
12 |
16 |
| Sensing Height |
80mm |
180mm |
280mm |
380mm |
| Beam Pitch |
25mm |
25mm |
25mm |
25mm |
| Sensible Object |
Opaque Object 30Ø |
Opaque Object 30Ø |
Opaque Object 30Ø |
Opaque Object 30Ø |
| Operating Temp |
0 C~50 C |
0 C~50 C |
0 C~50 C |
0 C~50 C |
|
